MAGNETIC DRILLING MACHINE

- Core Drill – 12mm to 100mm
- Machine Tap – M3 to M30
- Taper Shank Drill Bit – 14mm to 32mm
- Straight Shank Drill Bit – 1mm to 13mm
- Countersink Drill Bit – M6 to M50
- Holesaw – M15 to M100
- Maximum Cutting Thickness – 100mm thick metal plate
- 4 Step Speed with adjustable speed control
- Safety power cut-off & over loading protection
- Powerful Magnetic force to hold job piece more firmly
- Powerful double insulated motor – 1800W
- Quick conversation from Twist Drill to Core Drill with MT3 Tools Holder
- Auto-Cooling System for Core Drilling Operation
- Newly improve Sliding Guided System to reduce vibration during operation.
- Equipped with motor reverse turning

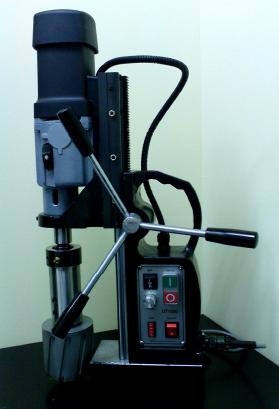

Model available : DT1000 (Other light usage drilling machine are also available)

HIGH SPEED H TYPE STEEL DRILLING MACHINE

Features :
-Easy changable holder for different tools and applications.
-Weight at 25kg
-Cutting diameter from 16mm to 50mm
-Cutting depth at 50mm
-Magnet dimentions at 200mm x 100mm
-Magnet holding power at 1000 kgf
-Motor output at 850W
-Motor rated amper 110V/120V is 7Amp and 220V/240V is 3.5Amp
-Motor no-load speed at 500rpm to 780rpm

Model available : TC50

PORTABLE MAGNETIC DRILLING MACHINE

Features :
-Easy changable holder for different tools and applications.
-Weight at 26kg
-Cutting diameter from 13mm to 50mm
-Cutting depth at 50mm
-Magnet dimentions at 200mm x 100mm
-Magnet holding power at 1000 kgf
-Motor output at 1100W
-Motor rated amper 110V/120V is 10Amp and 220V/240V is 5Amp
-Motor no-load speed at 500rpm to 800rpm

Model available : TC52

MAGNETIC DRILLING MACHINE

Features :
-Special power dual coil High Density magnet with 4500 kg pulling power with triple arbor bearing guidance
-Strong 1800 W durable H.P. motor
-Stepless variable torque control
-Standard automatic cooling system
-Stroke depth
-Dual mechanical speed control both are electronic stepless variable
-Electronic overload protection
-Mechanical slipping clutch
-Central positioned operating buttons
- Safety relay circuit
-Reset safety in case of power failure
-Weight at 36kg
-Max. cutting diameter is 130mm

Model available : ECO130AK

MAGNETIC DRILLING MACHINE

Features :

HIGH SPEED PRECISION BENCH DRILL MACHINE

Features :
-Use for Glasses, Watch, Electron, Gold, Copper, Steel, iron or all kinds of precise metal products.
-Design with fine adjustment & easy handle knob.
-Simple operation with adjustable contact angle.
-Weight at 24kg

Model available : BDS300

AUTOMATIC PORTABLE MAGNETIC DRILLING MACHINE

Features :
-Easy changable holder for different tools and applications.
-Automatic Feed and Return systems.

MAGNETIC DRILLING MACHINE

Features :
-Weight only 9.9 kg
-Very compact dimensions
-New dual coil high density magnet with 1500 kg pulling power
-Strong 800 W durable H.P. motor
-Magnet size at 160mm x 80mm
-Max. cutter diameter is 30mm
-Rated Speed at 450min-1
-Optimal bearing-mounted arbor
-Central positioned operating buttons
-Integrated system for inside cooling/lubricating
-Safety relay circuit
-Reset safety in case of power failure.

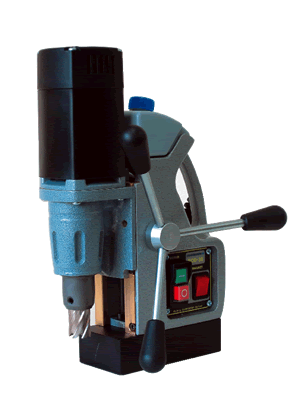

Model available : ECO30

MAGNETIC CORE DRILLING MACHINE

Features :

MAGNETIC DRILLING MACHINE

Features :

MAGNETIC DRILLING MACHINE

Features :

65mm MAGNETIC CORE DRILL MACHINE

Features :
Model : LY65

Capacity
Bit Maximum Diameter : 65mm
Maximum Cutting Depth : 60mm
Bit Retainer Internal Diameter : 19mm Weldon Shank
Magnet Dimensions : 220mm x 90mm x 100mm
Magnetic Adhesion : 1800 Kgf
Net Weight : 24 Kg
Overall Dimensions : H580 x W40 x L360mm

Standard Accessories :
1 Oil Tank Hex. : Wrench 6mm & 2.5mm
Safety Chain : 3 Crank Handles

COLUMN DRILL MACHINE

Features :
-Optional model come with adjustable tilt
-Design with safely shut off switch.
